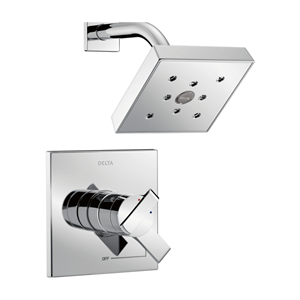

T17267 ARA MONITOR 17 SERIES H2OKINETIC® SHOWER TRIM CHROME

T17267 ARA MONITOR 17 SERIES H2OKINETIC® SHOWER TRIM CHROME

• MAXIMUM FLOW RATE: 1.75 GPM @ 80 PSI (6.6 L/MIN @ 550 KPA)
• MAINTAINS BALANCED HOT AND COLD WATER PRESSURE EVEN WHEN OTHER FIXTURES ARE IN USE
• COMPATIBLE WITH MULTICHOICE® UNIVERSAL ROUGH-IN VALVE BODY (R10000 SERIES)
• BACK-TO-BACK INSTALLATION CAPABILITY
• SOLID FORGED BRASS VALVE BODY CONSTRUCTION
• SEPARATE LEVER VOLUME CONTROL HANDLE AND TEMPERATURE ADJUSTMENT DIAL
• FIELD-ADJUSTABLE HOT WATER LIMIT STOP FOR ADDED SAFETY
• MAXIMUM DIAL ROTATION ADJUSTABLE BETWEEN 90° AND 180°
• ALL PARTS ARE SERVICEABLE AND REPLACEABLE FROM THE FRONT OF THE VALVE
• TUB PORT MAXIMUM FLOW RATE: 6.2 GPM @ 60 PSI WITH R10000-UNBX
• SHOWER ARM OVERALL HORIZONTAL LENGTH: 7" (178 MM), INCLUDING THREADED ENDS
• RED/BLUE TEMPERATURE INDICATOR MARKINGS
